廣泛使用于賓館、體育館、學校、酒樓、劇院禮堂、高級民用住宅和工礦企業等消防及通風的場合，還可以套于中央空調系統和環保凈化系統。電動機外置式為消防通風兼用，電動機內置式為通風用。輸送空氣和其它不自燃、對人體無害、無腐蝕性氣體，氣體內不允許有粘性物質，所含的塵土及硬質顆粒物不大于150mg/m3，作通風換氣時進氣溫度不得超過80℃,HTFC系列風機作消防用時,煙氣溫度在280℃時可l連續運行30分鐘.
HTFC-I系列單速消防柜式風機參數說明
|
機號 |
功率 |
轉速(r/min) |
流量(m3/h) |
全壓 |
噪聲 |
|
9# |
0.55 |
800 |
1590-2676 |
141-86 |
≤66 |
|
0.75 |
900 |
1790-3010 |
178-110 |
≤67 |
|
1.1 |
1200 |
2386-4014 |
317-195 |
≤71 |
|
1.5 |
1400 |
2784-4683 |
432-266 |
≤67 |
|
10# |
0.75 |
800 |
2238-3760 |
177-108 |
≤68 |
|
1.1 |
900 |
2514-4230 |
224-138 |
≤70 |
|
1.5 |
1200 |
3352-5640 |
398-245 |
≤72 |
|
2.2 |
1400 |
3911-6580 |
542-334 |
≤68 |
|
12# |
1.1 |
800 |
3771-6344 |
251-154 |
≤69 |
|
1.5 |
900 |
4243-7137 |
318-196 |
≤71 |
|
2.2 |
1200 |
5657-9516 |
565-348 |
≤72 |
|
3 |
1400 |
6600-11102 |
769-474 |
≤73 |
|
15# |
1.5 |
600 |
4607-7749 |
196-121 |
≤69 |
|
2.2 |
720 |
5528-9298 |
282-174 |
≤70 |
|
3 |
850 |
6526-10977 |
393-242 |
≤72 |
|
4 |
900 |
6910-11623 |
441-272 |
≤73 |
|
18# |
2.2 |
600 |
7733-13007 |
284-176 |
≤70 |
|
3 |
720 |
9279-15608 |
408-253 |
≤71 |
|
4 |
800 |
10310-17342 |
504-312 |
≤72 |
|
5.5 |
830 |
10697-17993 |
543-336 |
≤74 |
|
20# |
3 |
560 |
9196-15469 |
290-200 |
≤71 |
|
4 |
610 |
10017-16850 |
345-273 |
≤72 |
|
5.5 |
720 |
11824-19889 |
480-330 |
≤74 |
|
7.5 |
800 |
13137-22098 |
593-407 |
≤75 |
|
22# |
4 |
600 |
14026-23590 |
422-273 |
≤73 |
|
5.5 |
650 |
15195-25556 |
495-320 |
≤75 |
|
7.5 |
720 |
16831-28308 |
607-393 |
≤77 |
|
11 |
800 |
18701-31453 |
750-485 |
≤73 |
|
25# |
5.5 |
520 |
16896-28416 |
373-219 |
≤74 |
|
7.5 |
580 |
18845-31694 |
464-272 |
≤76 |
|
11 |
650 |
21120-35520 |
583-342 |
≤78 |
|
15 |
720 |
23394-39345 |
715-419 |
≤74 |
|
28# |
7.5 |
500 |
21224-35696 |
438-297 |
≤76 |
|
11 |
560 |
23771-39980 |
549-375 |
≤77 |
|
15 |
600 |
25469-42836 |
630-430 |
≤79 |
|
18.5 |
650 |
27591-46405 |
739-505 |
≤80 |
|
22 |
720 |
30562-51403 |
907619 |
≤75 |
|
30# |
11 |
520 |
27958-47022 |
551-341 |
≤77 |
|
15 |
560 |
30108-50639 |
639-395 |
≤79 |
|
18.5 |
580 |
31183-53563 |
685-424 |
≤81 |
|
22 |
610 |
32796-55160 |
758-469 |
≤82 |
|
30 |
650 |
34947-58777 |
860-532 |
≤76 |
|
33# |
11 |
400 |
27840-45800 |
424-290 |
≤77 |
|
15 |
450 |
31320-51530 |
545-357 |
≤79 |
|
18.5 |
500 |
34800-57260 |
680-453 |
≤81 |
|
22 |
550 |
38280-62980 |
822-548 |
≤83 |
|
30 |
600 |
41760-68700 |
970-652 |
≤84 |
|
37 |
630 |
43850-72140 |
1080-719 |
≤78 |
|
36# |
15 |
350 |
31490-51810 |
396-264 |
≤79 |
|
18.5 |
400 |
35990-59210 |
518-344 |
≤81 |
|
22 |
450 |
40490-66610 |
654-436 |
≤82 |
|
30 |
500 |
44990-74010 |
808-538 |
≤84 |
|
37 |
550 |
49490-81420 |
970-651 |
≤85 |
|
45 |
580 |
51280-85855 |
1086-723 |
| HTFC-II雙速消防柜式風機參數說明
|
機號 |
功率(kw0 |
轉速(r/min) |
流量(m3/h) |
全壓 |
|
12# |
6/4P
1.5/2.2 |
800/1200 |
3771-6344 |
251-154 |
|
5657-9516 |
565-348 |
|
6/4p
3/4 |
920/1400 |
4337-7295 |
332-204 |
|
660-11102 |
769-474 |
|
15# |
6/4p
4/5.5 |
700/1050 |
5374-9039 |
266-164 |
|
8061-13559 |
599-370 |
|
6/4p
6.5/8 |
800/1200 |
6142-10331 |
348-214 |
|
9213-15479 |
784-283 |
|
18# |
6/4p
4/4.5 |
600/900 |
7733-13007 |
284-176 |
|
11598-19509 |
637-394 |
|
6/4p
6.5/8 |
700/1050 |
9021-15174 |
385-239 |
|
13531-22761 |
867-538 |
|
20# |
6/4p
6.5/8 |
530/800 |
8703-14639 |
259-161 |
|
13137-22098 |
591-368 |
|
6/4p
7/8.5 |
600/900 |
9852-16573 |
331-206 |
|
14779-24860 |
746-463 |
|
22# |
6/4p |
530/800 |
12389-20837 |
329-204 |
|
6.5/8 |
18701-31453 |
750-466 |
|
6/4p |
600/900 |
14026-23590 |
422-262 |
|
9/11 |
21039-35385 |
949-589 |
|
25# |
6/4p |
480/720 |
15596-26230 |
301-186 |
|
13/16 |
23394-39345 |
678-419 |
|
6/4p |
539/800 |
1722028926 |
367-227 |
|
18.5/22 |
25993-43716 |
837-518 |
|
28# |
6/4p |
480/720 |
21041-34268 |
388-240 |
|
18.5/22 |
30562-51403 |
875-542 |
|
6/4p |
530/800 |
22496-37838 |
474-293 |
|
22/28 |
33957-57114 |
1080-669 |
|
30# |
8/6p |
500/650 |
26882-45213 |
508-314 |
|
22/30 |
34947-58777 |
860-532 |
|
8/6p |
540/720 |
29032-28829 |
593-366 |
|
30/37 |
38710-65106 |
1055-652 | |

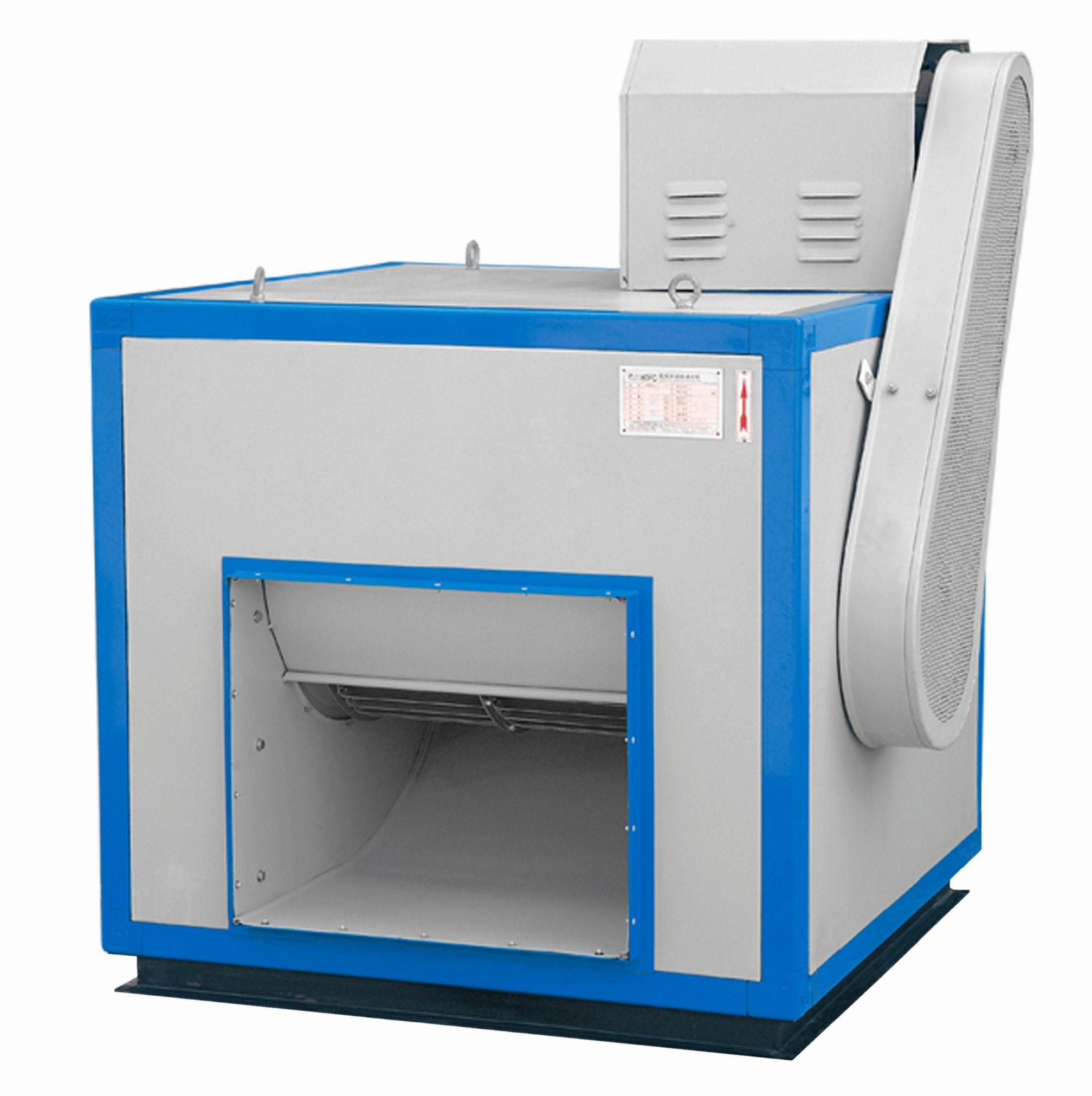

柜式風機
